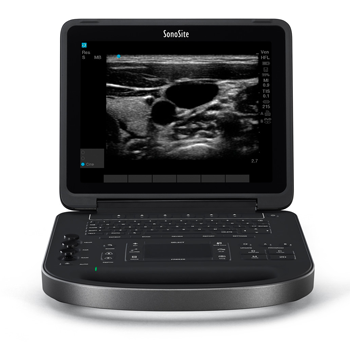

Sonosite Edge II Ultrasound Machine

Product Highlights:

Condition: New & Refurbished

Brand: Sonosite

Type: Portable

Application:

Manufacture Description:

Sonosite Edge II

Rugged. Reliable. Responsive.

Clear Ultrasound Diagnostics For Those Critical Moments

The SonoSite Edge II Ultrasound System offers you an enhanced imaging experience through industry-first transducer innovations like DirectClear and Armored Cable Technology. And, because it is a SonoSite, the Edge II stays true to our design pillars of durability, reliability and ease of use.

Visualization, Clearly Enhanced.

OPTIMIZED IMAGING EXPERIENCE
DirectClear Technology is a novel, patent-pending process that elevates transducer performance:

  • Improved penetration and contrast resolution: Unlike conventional SonoSite transducers, a more efficient material has been embedded into the design that allows for the generation of more acoustic signal. In parallel, a reflective layer has been added to reduce the loss of this signal, as it is transmitted into the patient.
  • Sharpened detail resolution: An additional layer has been added to provide a better acoustic match between the transducer and the patient, increasing the ability to resolve small structures and aid in your diagnostic confidence.

ELEVATED COLOR SENSITIVITY
Through a dualflex and thin lens design, combined with new advancements in image optimization, the HFL38xi was enhanced to increase penetration, clarity and color sensitivity. You can now better visualize nerves and vessels, whether it be for procedural guidance or flow analysis.

TAKING TRANSDUCER DURABILITY TO THE ARMORED LEVEL
How often do transducer cables get rolled over, stepped on or twisted? Talking to our customers, the response is “all the time,” “too often to count,” or simply “a lot.”

With an embedded metal jacket, armored cables protect your transducers from these common scenarios. By safeguarding electrical connections inside, armored cables help maintain image quality over the life of your transducer.

Ultrasound For Clarity and Confidence

  • Wide-angle, full-bleed glass display with anti-reflection etch for minimal adjustments during viewing
  • Keypad sealed to the edge to inhibit liquid ingress
  • Easy-to-use interface for intuitive access to frequently used functions like gain control
  • Low-profile keys with snapdome technology for easy cleaning and tactile feedback

    Sonosite Edge II Transducers

      L38xi
      10-5 MHz Linear
      Applications: lung, nerve, small parts, arterial, venous
      Scan depth: 9 cm

      HFL38xi
      13-6 MHz Linear
      Applications: breast, lung, musculoskeletal, nerve, ophthalmic, small parts, arterial, venous
      Scan depth: 6 cm

      HFL50x
      15-6 MHz Linear
      Applications: breast, musculoskeletal, nerve, small parts
      Scan depth: 6 cm

      L25x
      13-6 MHz Linear
      Applications: lung, musculoskeletal, nerve, superficial, arterial, venous, ophthalmic
      Scan depth: 6 cm

      C11x
      8-5 MHz Curved
      Applications: abdominal, neonatal, nerve, arterial, venous, cardiology (vet)
      Scan depth: 13 cm

      rC60xi
      5-2 MHz Curved
      Applications: abdominal, musculoskeletal, nerve, ob, gyn
      Scan depth: 30 cm

      ICTx
      8-5 MHz Curved
      Applications: gynecology, obstetrics
      Scan depth: 13 cm

      rP19x
      5-1 MHz Phased
      Applications: abdominal, cardiology, lung, ob, orbital, TCD
      Scan depth: 35 cm

      P10x
      8-4 MHz Phased
      Applications: pediatric abdominal, pediatric cardiology, neonatal head
      Scan depth: 14 cm

      HSL25x
      13-6 MHz Linear
      Applications: lung, musculoskeletal, nerve, superficial, arterial, venous, ophthalmic
      Scan depth: 6 cm

      TEExi
      8-3 MHz Multi
      Applications: adult cardiology, multiplane transesophageal 180° rotation of the imaging plane, providing a 360° field of view
      Scan depth: 18 cm

      L52x (Vet)
      10-5 MHz Linear
      Applications: musculoskeletal, ob, arterial
      Scan depth: 15 cm

      C35x
      8-3 MHz Curved
      Applications: abdominal, musculoskeletal, nerve, ob, spine
      Scan depth: 15 cm

      C8x
      8-5 MHz Curved
      Applications: prostate
      Scan depth: 11.5 cm

      P11x
      10-5 MHz Phased
      Applications: venous, vascular
      Scan depth: 12 cm

      SYSTEM SPECIFICATIONS

      • System weight:  9.21 lbs/4.18 kg with battery
      • Dimensions:  12.8" x 12.1" x 2.5"/ 32.6 cm x 30.7 cm x 6.4 cm (LxWxH)
      • Display:  12.1"/30.7 cm diagonal LCD (NTSC or PAL) with chemically etched glass layer
      • Viewing Angles: 85 degrees up/down/left/right
      • Architecture:  All-digital broadband
      • Dynamic range:  Up to 165 dB
      • Gray scale:  256 shades
      • HIPAA compliance:  Comprehensive tool set

      IMAGING MODES
      2D / Tissue Harmonic Imaging / M-Mode
      Velocity Color Doppler / Color Power Doppler
      PW, PW Tissue Doppler and CW
      Doppler angle, correct after freeze

      STEEP NEEDLE PROFILING
      C35x - Nerve, MSK, Spine
      HFL38xi – Nerve, MSK, Breast, Small Parts,
      Arterial, Venous
      HFL50x – Nerve, MSK, Breast, Small Parts
      L25x – Nerve, MSK, Arterial, Venous
      HSL25x – Nerve, MSK, Arterial, Venous
      L38xi – Nerve
      rC60xi – Nerve, MSK

      USER INTERFACE AND REMAPPABLE CONTROLS
      Softkeys to drive advanced features
      Programmable A and B keys: each can be assigned by the user for increased ease of use
      Low profile keyboard, sealed completely to edge for maximum infection control
      Track pad with select key for easy operation and navigation
      Doppler controls: angle, steer, scale, baseline, gain and volume
      Image acquisition keys: review, report, clip store, save
      Dedicated AutoGain and exam keys to allow quick activation
      Color controls: size/position, angle, scale, baseline and invert

      TRANSDUCERS
      Broadband/Multifrequency:

      DirectClear Technology (rC60xi, rP19x)
      Armored Cable Technology (Optional on rC60xi, rP19x, L38xi, L52x)
      Linear Array, Curved Array, Phased Array,
      Multiplane TEE and Micro-Convex
      Center line marker for linear transducers
      Exam types: abdominal, breast, cardiology, gyn, lung, musculoskeletal, neonatal, nerve, ob, ophthalmic, orbital, small parts, spine, superficial, TCD, arterial, venous

      DURABILITY
      Drop-tested at 3 feet/91.4 cm

      APPLICATION SPECIFIC CALCULATIONS
      OB/GYN/Fertility:
      Diameter/ellipse measurements, volume, ten follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user selectable authors, ratios, amniotic fluid index, patient report, humerus and tibia measurement and charts, HR, Fetal HR, MCA, UMBA, Ovarian Volume, Follicle Volume, Uterine Volume, Endometrial thickness
      Arterial: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, peak trace, ICA/CCA ratio, patient report, HR, Bulb, Vertebral Artery, TAP
      Cardiac: LVO, Automated Cardiac Output package and patient report including: ventricular, aortic and atrial measurements; ejection fraction, volume measurements, Simpson’s rule, continuity equation, pressure half time and cardiac output; IVC Collapse Ratio, LA/RA Volume, TAPSE, PA AT, TV E, A, PHT, TVI, MV time, Pulm Veins, LV Mass, TDI e', TDI a', HR, dP:dT, Qp/Qs Ability to view EF and FS simultaneously
      Transcranial Doppler (TCD): Complete TCD package including Time Average Peak (TAP)

      ONBOARD IMAGE AND CLIP STORAGE/REVIEW
      16GB internal flash memory storage capability
      Storage support for up to 500 patients
      Clip Store capability (maximum single clip length: 60 seconds)
      Clip Store capability via either number of heart cycles (using the ECG) or time base. Maximum storage in ECG beats mode is 10 heart cycles. Maximum storage in time base mode is 60 seconds
      Start/Stop toggle capability for clips
      USB Auto Export
      Encryption of patient data on system
      Cine review up to 255 frame-by-frame images

      MEASUREMENT TOOLS, PICTOGRAMS AND ANNOTATIONS
      2D:
      Distance calipers, ellipse and manual trace
      Doppler: Velocity measurements, pressure half time, auto and manual trace
      M-Mode: Distance and time measurements, heart rate calculation
      User-selectable text and pictograms
      User-defined, application-specific annotations
      Biopsy guidelines

      CONNECTIVITY (EXTERNAL DATA MANAGEMENT)
      SonoSite Patient Data Archival Software (PDAS) for Wireless/Wired Image, Report Management
      Q-path ultrasound management system
      DICOM® Image Management (TCP/IP): Print and Store, Modality Work List, Storage Commit: Modality, Perform, Procedure Step
      PC Workstation Image Management (TCP/IP, USB):
      Direct writing capability to USB 2.0 mass storage removable media (PC and MAC compatible)
      Supported export formats: MPEG-4 (H.264), JPEG, BMP, and HTML

      CONNECTIVITY (SYSTEM PORTS)
      Ports, External Video/Audio:
      USB ports (2)
      ECG input (1)
      Integrated Speakers
      With Mini-dock:
      S-Video (in/out) to VCR for record and playback
      DVI output
      Composite video output (NTSC/PAL) to VCR or video
      printer
      Audio output
      Ethernet or Wireless Image/Data Transfer
      USB Port (1)
      RS-232 Transfer

      POWER SUPPLY
      System operates via battery or AC power
      Rechargeable lithium-ion battery
      AC: universal power adapter, 100-240 VAC,
      50/60 Hz input, 15 VDC output
      Less than 25 sec. from power-on to scanning

      EDGE II STAND AND PERIPHERALS
      Mini-dock, transducer and gel holders
      AC Cord Retainer
      Larger baskets with easy removal feature for cleaning
      Casters to prevent accidental locking
      Optional Triple Transducer Connect (TTC) to quickly
      activate transducers electronically
      Optional foot switch
      Optional PowerPark and PowerPack

      OPTIONAL PERIPHERALS
      Printers:
      Medical-grade black and white or color
      External data input devices: Bar code reader
      ECG Slave Cable and Adapter Kit: Used to interface with external ECG monitors
      ECG module: 3-lead ECG – works with standard ECG leads and electrodes
