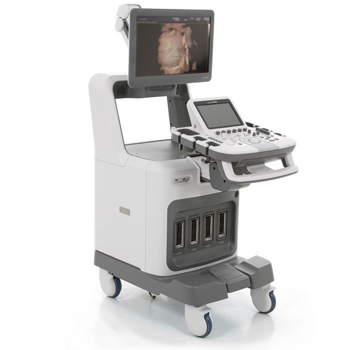

Samsung Accuvix A30
Leading the new standards
Experience outstanding performance
As the pioneer in ultrasound and imaging, Samsung sets global standards in ultrasound systems. We focus on supporting more accurate, easier and faster diagnosis. Our new ACCUVIX A30 system establishes new benchmarks in operational convenience with features such as EZ Exam™ and ElastoScan™. Furthermore, the ACCUVIX A30 offers 23-inch LED ultrasound monitor, enriched 3D performance, increased detection rates, customizable interface and ergonomic design.
Hybrid beamforming engine
With enhanced H/W and newly added S/W engines, users can process data more accurately through optimized processing. This hybrid beamforming engine enables a more in-depth, more detailed scanning with a higher energy output.
The S-Vue transducer (CV1-8A, CA1-7A) provides broader bandwidth and higher sensitivity. This allows to deliver high image resolution even with technically challenging patients. In addition, the ergonomically designed and lightweight transducer enables users to experience less fatigue. Especially, CV1-8A is approximately 30% lighter than the conventional Samsung transducer.
Uncompromised image quality
Sophisticated image processing technology detailing skin tone and facial features provides outstanding accuracy for users and memorable experiences for mothers. Our recent breakthroughs in lifelike images are displayed on the full HD LED ultrasound monitor, with superior color performance and special filtering that removes unwanted speckle and noise. Images are not only rendered with more lifelike details on optimal fetal display but also processed and stored noticeably easier.
23-inch LED monitor
With the release of the 23-inch LED ultrasound monitor, the ACCUVIX A30 introduces high-quality color image representation. The new, wider monitor provides superior performance over CRT and LCD monitors, delivering higher resolution for more accurate diagnosis.
Highly sensitive, Cervix ElastoScan™ easily reveals changes in the uterine cervix often missed by palpation, enabling more accurate assessment
Auto IMT™ allows automatic Intra-Media Thickness measurement of both the near and far walls of the Common Carotid Artery for analyzing patients' risks of stroke and heart diseases. The simple operation helps to enhance exam productivity and increase patient throughput.
Enhanced DPDI, a color Doppler with greater sensitivity, can help to detect peripheral blood vessels. Its advanced Doppler enables accurate diagnosis when color detection is especially difficult.
Low-MI is a technology that uses contrast agents when performing ultrasound scans. This technology processes reflected signals from contrast agents, which are stimulated by particular ultrasound pulses, and produces a unique sonogram with increased contrast. Exams are easier to perform by providing dual-live views.
3 Plane Strain
3 Plane Strain is a quantitative assessment tool for global and segmental wall motion from three apical views and it shows peak longitudinal systolic strain in a bull’s eye display.
- Comprehensive LV presentation
- Simultaneous chamber view with its segmental information
- Intuitive segmental strain values and Time to Peak
Speckle strain which is independent from the patient window.
- Quick, simple, easy and robust
- Correlation and estimation with Ejection Fraction
- 2D speckle tracking in an angle-independent way
Easier exams than ever
To ensure more comfortable and simplified testing environments, Samsung developed proprietary technology that gives users more customizable controls and semi-automated settings that makes tasks and operations easier to manage. Features such as EZ Exam™ transform multiple steps into a streamlined process at the touch of a button. Advanced detection technologies and innovative measurement tools also semi-automate tasks and facilitate trouble-free operation.
All-New User Interface
Improved preset menus and modes make testing easier by reducing multiple tasks. Independent settings for user preset and basic preset also support simple operation.
Helping to identify early detection of lesions and various other diseases, ElastoScan™ provides clinical information that conventional studies typically cannot detect.
EZ Exam™ transforms frequently used stepby- step exams into a single, streamlined procedure.
Allowing users to acquire ElastoScan™ images without compression, Thyroid ElastoScan™ ECI has an index for detecting the possibility of nodules.
Utilize time-saving technologies
The ACCUVIX A30 relies on cutting-edge technology and streamlined imaging procedures in order to allow users to become more time-efficient. For instance, real-time USB/DVD recording is a thoughtful function that enables simultaneous scanning and recording. The ACCUVIX A30 also has upgraded color technology, customizable preset ranges, and advanced imaging parameters that further improve workflow efficiency.
ADVR™, integrated DVD (720x480) and USB (Full HD 1920 x 1080), permits simultaneous scanning and recording, creating an environment that allows users to revisit recorded areas.
Color Opt Flow™
The exclusive color technology supports quick color image representations of blood flow. Upgraded capabilities include changing slow, moderate or fast color speeds. The preset ranges allow faster evaluation of optimized blood flow images, depending on the application.
By enabling automatic optimization of key imaging parameters with the touch of a button, Quick Scan™ improves workflow efficiency.
Employ ergonomic design
With mobility and easy access in mind, we made the ACCUVIX A30 to be easily transported, whether at the bedside, private clinics or medical labs. The intuitive control panel can be adjusted easily to the user’s preference, and the monitor arm can move front to back as well as side to side. Our advanced ergonomic design lets medical experts focus more on patients.
Flexible control panel
Panel can be adjusted side-to-side and up-and-down for user comfort.
- Height: adjustable +180mm
- Rotation: 60°, adjustable +/- 30°
Articulated monitor arm
The monitor’s controls provide unprecedented flexibility and user comfort, adjusting both up and down and side to side for personalized performance.
- Height: adjustable +260mm (1415~1760 mm)
- Rotation: adjustable +/- 50° from center, others +/- 130° from center
- Tilt: adjustable +45°/ -15° from center
- Front/Back: adjustable +339.4 mm
A single pedal controls a swivel lock mechanism to conveniently secure console in place and accommodates efficient movement during a variety of scanning procedures.
